Automotive Electrical Systems Master Guide | 123 Auto Guides Learning Series, Vol. 10

You turn the key and get a slow crank, or nothing at all. Most drivers either replace the battery and hope that fixes it, wasting money if the real problem is somewhere else, or assume the worst and start pricing a new alternator before checking anything that would actually confirm it. This guide explains exactly what has to happen for your car to start, so you diagnose the real problem first and stop throwing parts at a guess.

Who it's for: Any driver dealing with a slow crank, dead battery, or dashboard electrical warning, especially those who want to diagnose the real cause before replacing parts by guesswork.

Automotive Electrical Systems Master Guide walks through your car's 12-volt electrical system: the battery, alternator, starter motor, and the fuses and relays that protect everything in between.

Covers how to tell a dying battery from a failing alternator or starter, what the battery warning light actually means, how to read a click, a slow crank, or a grinding sound, and how to check a suspected blown fuse safely yourself.

What's Inside

• Introduction
• How Your Electrical System Works

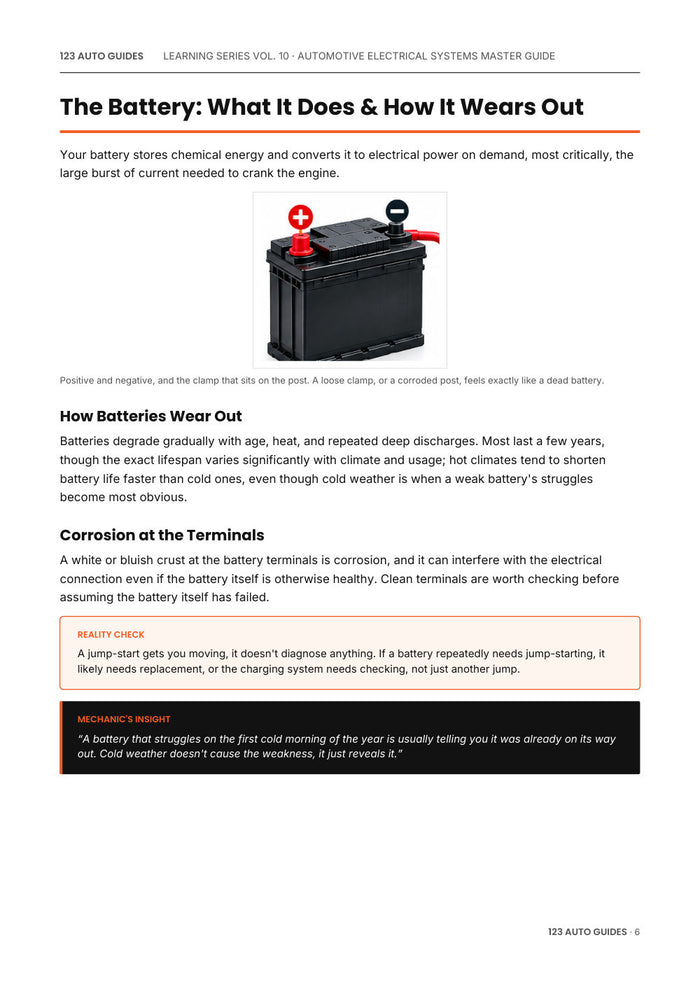

• The Battery: What It Does & How It Wears Out
• The Alternator: Keeping the Battery Charged
• The Starter Motor: What Happens When You Turn the Key
• Fuses & Relays: Your Circuit's Safety Net

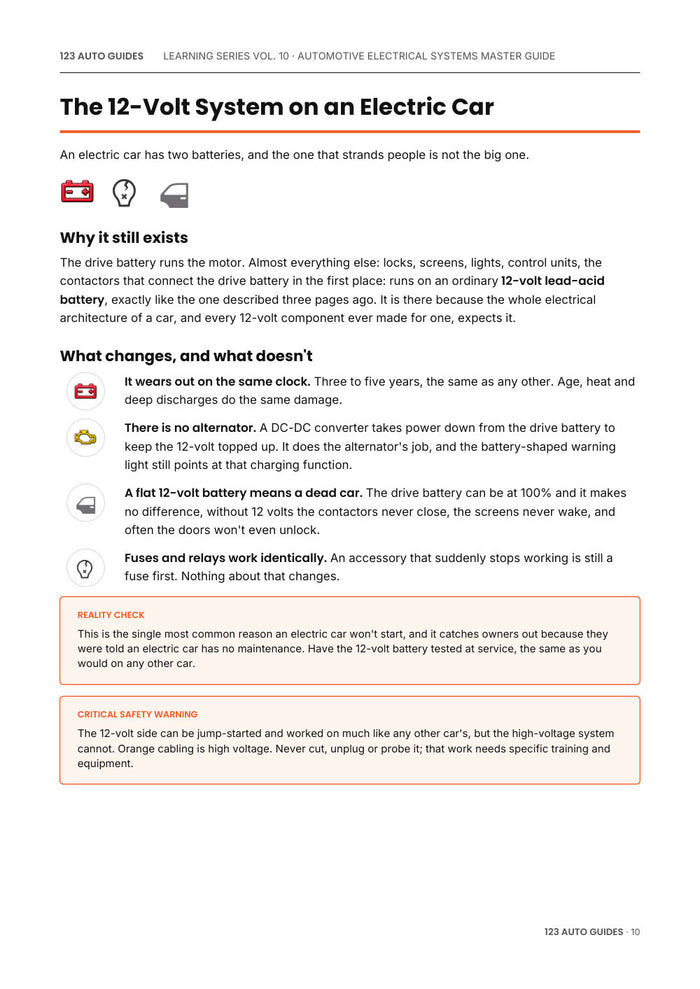

• The 12-Volt System on an Electric Car

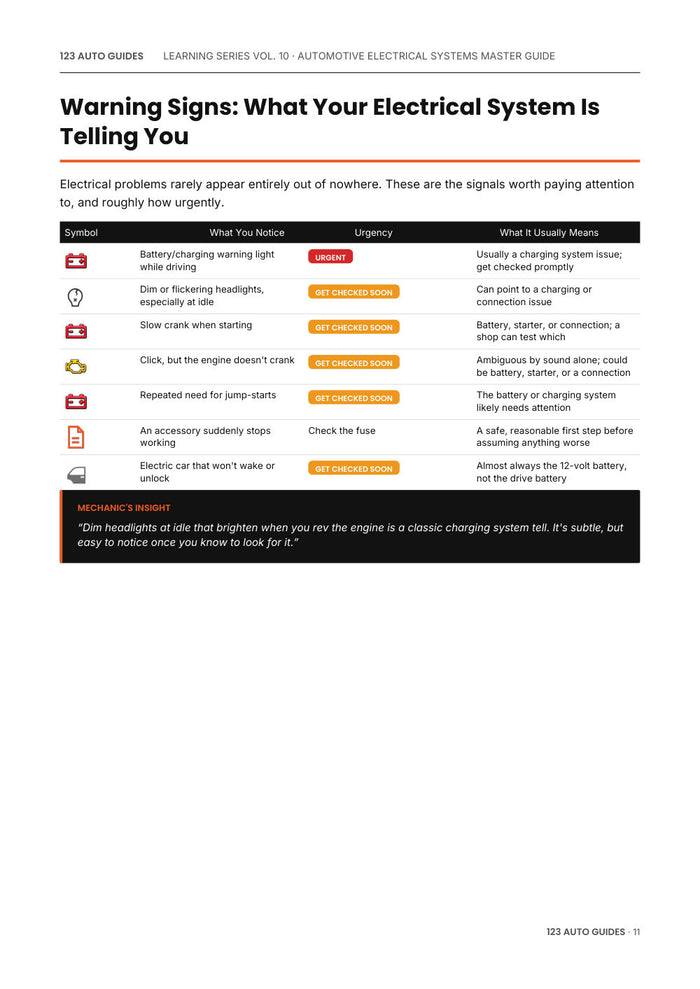

• Warning Signs: What Your Electrical System Is Telling You
• DIY vs. Professional: What's Safe to Check Yourself
• Common Mistakes
• Quick Reference Table
• One-Page Cheat Sheet
• Before You Go
• Free Bonus: 25-Point Inspection Checklist

This guide provides general educational information. Electrical system layout and component ratings vary by manufacturer and model. Always consult your vehicle's owner's manual, and disconnect the battery before working on any electrical component.
