Your dashboard shows three unrelated warning lights at once, and none of the components they point to seem connected. Most drivers assume the car has multiple problems at the same time, when the real explanation is usually a single fault on the shared network that every module reports over.
Our Vehicle Electronics guide introduced the idea that your car's modules share information over an internal network rather than each having a dedicated wire to every other module. This guide explains exactly how that network, most commonly CAN bus (Controller Area Network), actually works. Plain English, no fabricated numbers.
Covers what CAN bus actually is and why it replaced point-to-point wiring, how modules share the network without colliding, the connection between CAN bus and the OBD2 port, why one fault can affect many systems at once, and how technicians actually diagnose network issues.

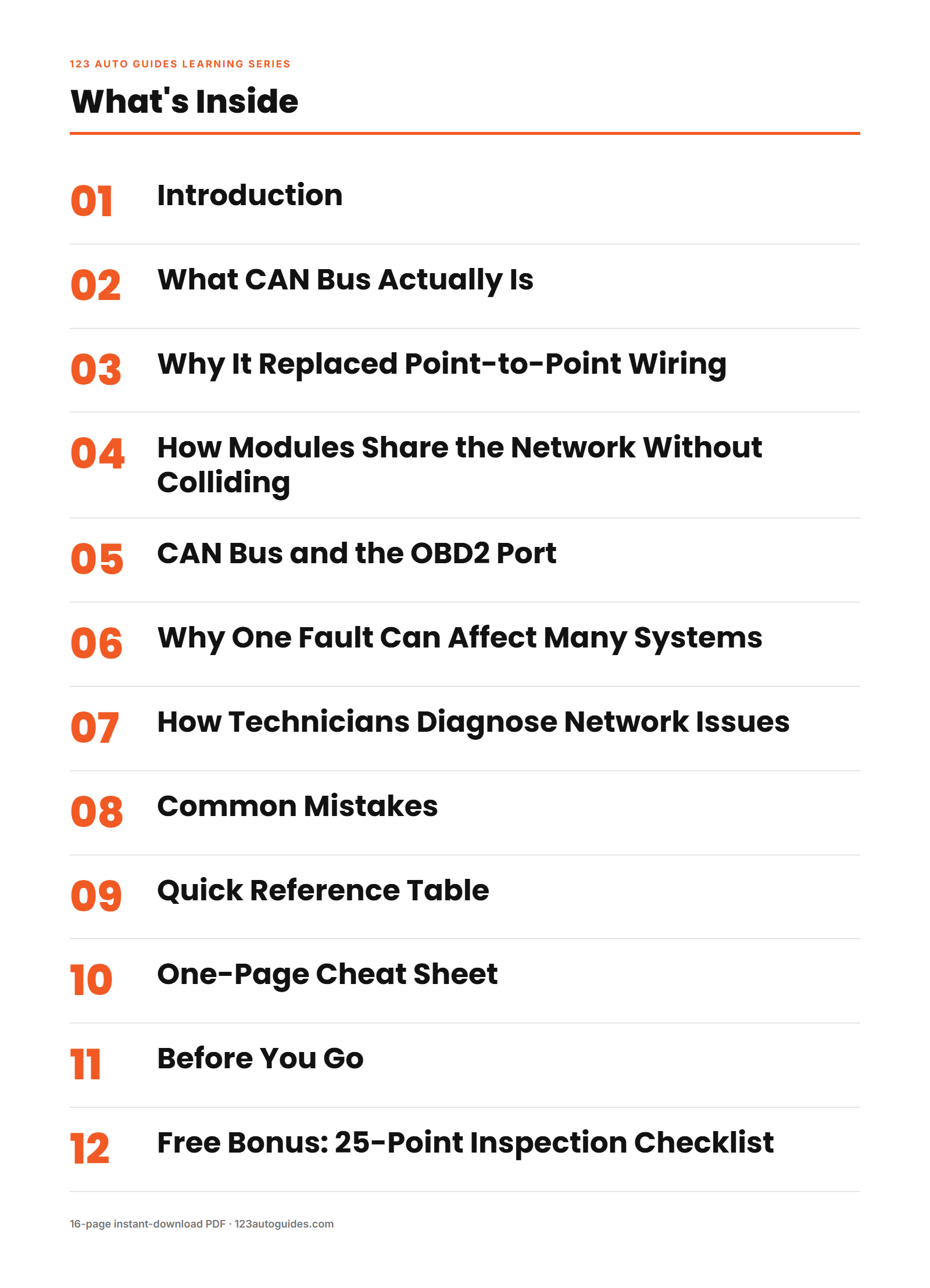

What's Inside
Introduction
What CAN Bus Actually Is
Why It Replaced Point-to-Point Wiring
How Modules Share the Network Without Colliding
CAN Bus and the OBD2 Port
Why One Fault Can Affect Many Systems
How Technicians Diagnose Network Issues
Common Mistakes

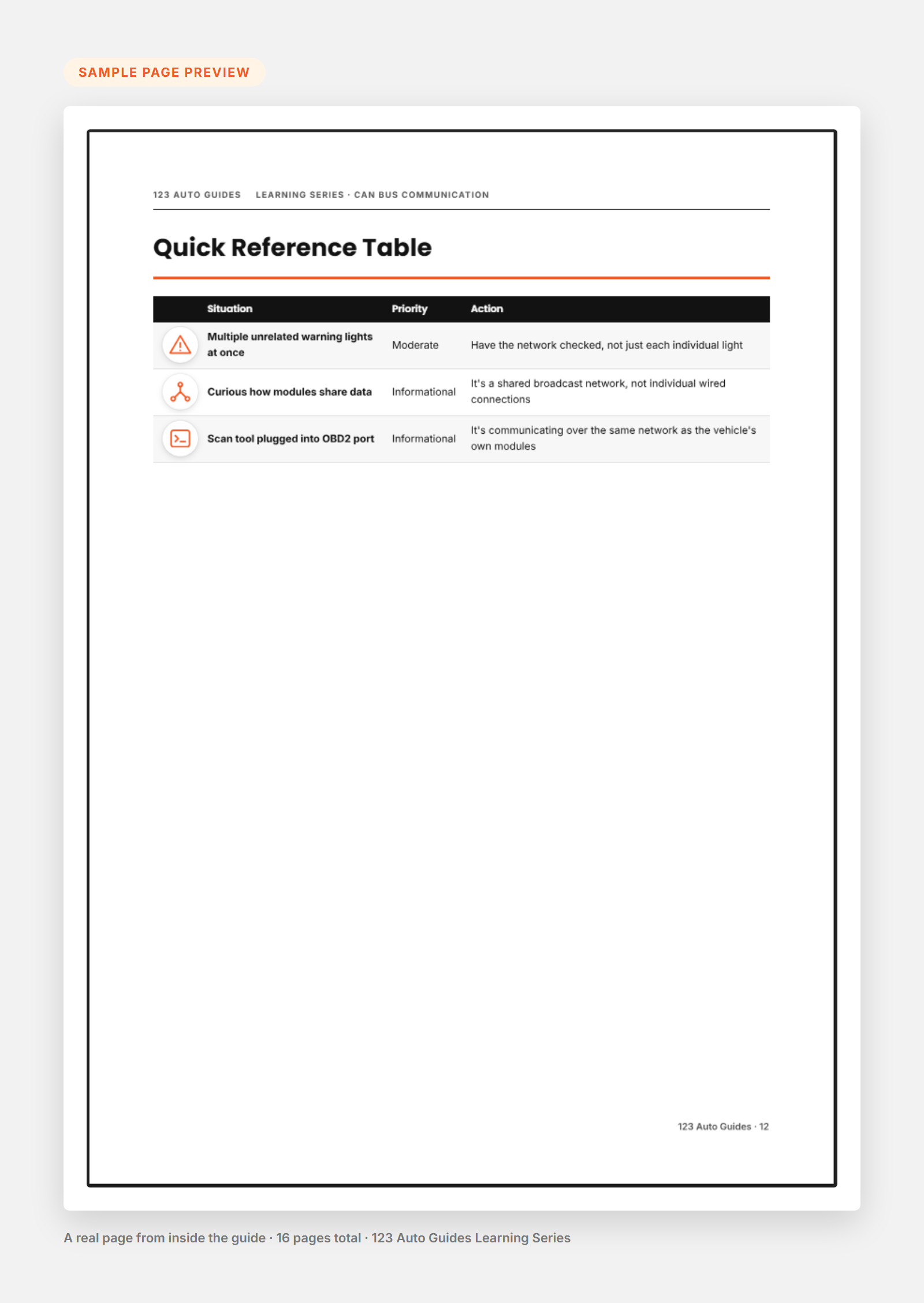

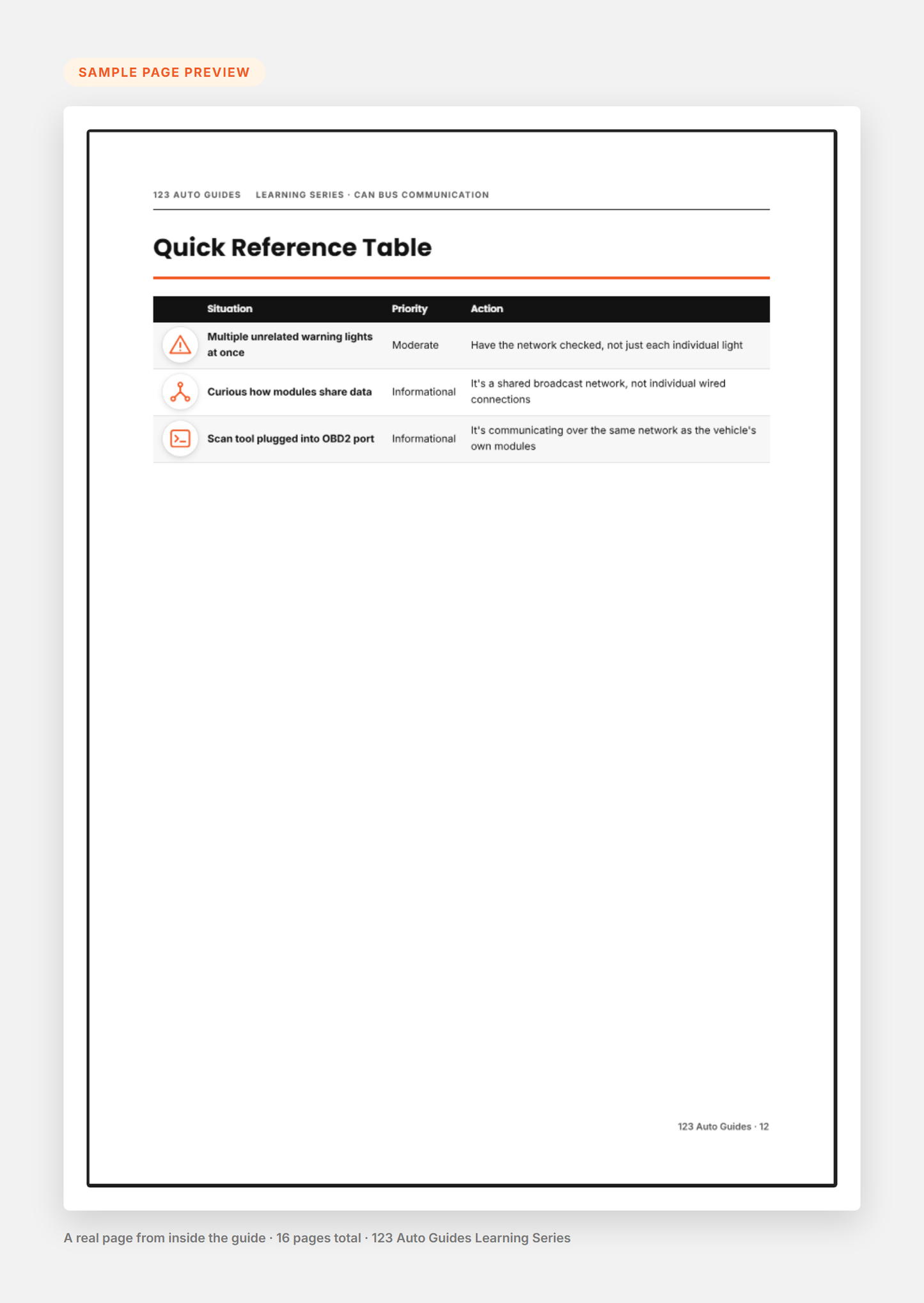

Quick Reference Table
One-Page Cheat Sheet
Free Bonus: 25-Point Vehicle Inspection Checklist
16-page instant-download PDF. Plain English, no jargon, fact-checked before publishing.
This guide provides general educational information on a standardized, widely documented protocol. Exact network architecture varies by manufacturer and model. Always confirm any diagnosis with a proper scan tool and a qualified technician before replacing parts.
